Year
2025
Skills
3D Modeling, UI Design, Ergronomic Analysis, Benchmark Research
Duration
14 Weeks
Tools
Solidworks, Keyshot, Photoshop, Illustrator, 3D Print, Painting
Alpha C is a high-performance all-mountain ski boots that Salomon collaborate with Corvette to design for ski racers and advanced skiing lovers. Protective and lightweight to contain comfortable and performance during skiing. Use the APP to adjust the heated inner boot to keep warm. Through the sock liner's sensors and chips, let AI technology provide pressure distribution, speed, and data analysis on the app.
Alpha-C Design
APP Interface

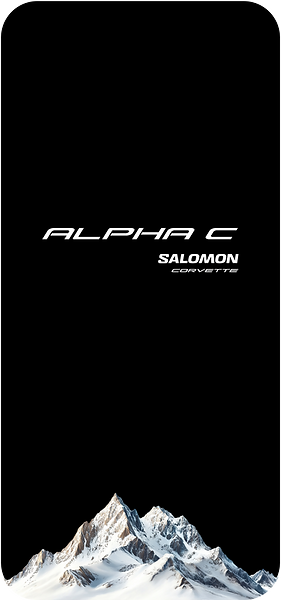

Start Page
Image showing after the app is open and running, loading the home page
Home Page
360 degree turnable ski boots view, weather, date, and snow condition, battery display, main function bar, resort informationm and account setting
Thermos Control Page
Linner temperature display, auto thermos function based on outer environment and account preference memory
Thermos Control Page
Temperature adjustment with unit display change

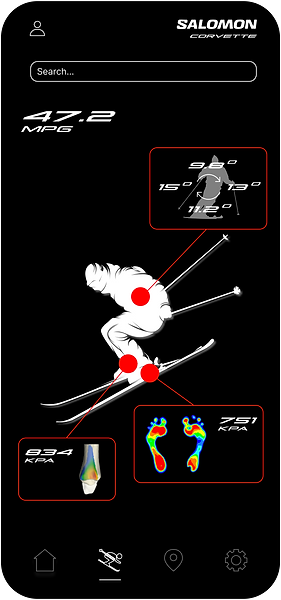

AI Analysis
Gesture suggestion, current speed display, body incline angles display, searching box
Live Mapping
Ski report, route map, sharing location with friends, average speed, top speed, distance, runs, and vertical falls, scoring
This collaboration seamlessly blends Salomon’s masterful craftsmanship in elite competitive skiing with the ultimate speed aesthetics and supercar aerodynamics embodied by Corvette, resulting in a pioneering piece of ski gear that combines intelligent temperature control, precise data monitoring, and lightweight performance.
Salomon's Identity
“What fascinates me the most is what I’m going to invent tomorrow.”-Georges Salomon, Founder
PERFORMANCE
INNOVATION
ADVENTURE
“Salomon’s purpose is to help people unleash the best version of themselves through fulfilling outdoor sports experiences. We aim to transform people into agents of positive change.” -Fransco Fogliato, Salomon CEO
OUTDOOR
VERSALITY
SUSTAINABILITY
Corvette's Language
End Users
The age spectrum ranges from 22 to 37, averaging at 28.37 among the top 30, highlights the varying career stages and longevity in the sport. -statistic.com
Professional Alpine Ski Racer
Advanced Skiing Lovers
Pain Points
Comfort
Hard shells increase pressure points, leading to toe, ankle, and instep pain. Tight ski boots can lead to poor circulation, triggering cold or numb feet and affecting race form
Weight Issues
Although lighter than racing ski boots, many all-around ski boots are still heavier than freeride or mountaineering boots, which may increase leg fatigue over long periods of skating or walking. Lightweight ski boots may sacrifice some support and durability
Donning and Doffing
All-mountain ski boots are usually stiff and still difficult to put on and take off, especially when the shell hardens in cold temperatures. Sometimes need to use a heated boot bag or warmer to help them get on and off
Biomechanics Analysis
Pressures During Skiing
The Sagittal and Transverse Planes
Movements on this plane are controlled by the ankle joint, and it is here that limitations and excesses can wreak havoc on neutral balance whilst skiing
Ankle Flex Range
In real terms, 10 to 14 degrees of ankle flex is about neutral. Those who have more or less could almost certainly benefit from some adjustment to their boots, particularly those with limited ankle flex.
Limited Flexion Skier
Skiers with limited flexion often display a number of symptoms, such as severe thigh burn or difficulty staying forward on their skis on steep terrain. They may also have a chronic heel lift, no matter how tight they buckle their boots. This restriction is likely to promote a posterior or back-seat skiing stance, isolating the thigh muscles and causing thigh burn.
Design Criteria

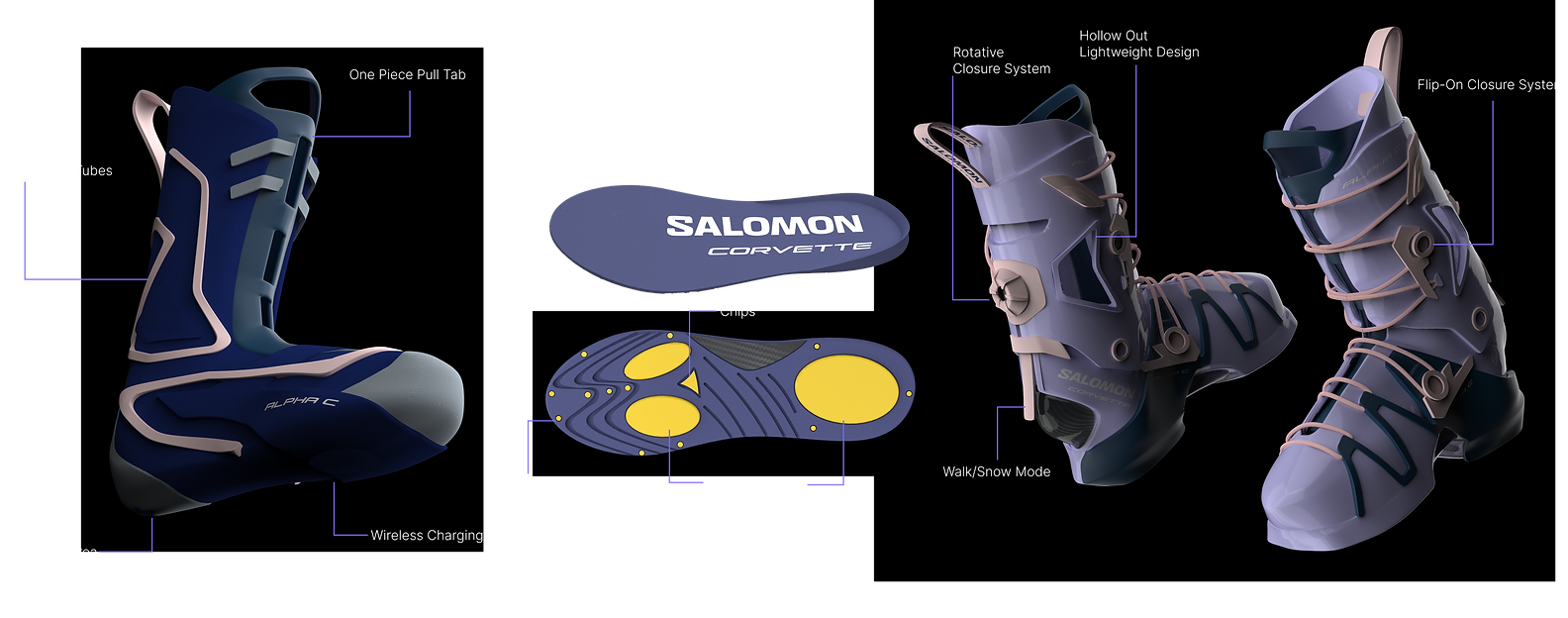

Lightweight Hollow Outer Shell Design
Lighter weight while maintaining support and boot stability
Intelligent Heated Lining
App interface adjusts the temperature of the inner boot to prevent overcooling and keep warm
Thickened Area Design
Thickening of pressure areas to protect toes, soles, and ankles, relieve pain, and provide a more comfortable wearing
AI Analysis Interaction App
Through the sensors and chips located insole, AI technology provides pressure distribution, speed, posture analysis, and data on the phone
Technology Application
Qi Wireless Charging
Transmitter (Tx): A wireless charging pad connected to a power source, generating an electromagnetic field.
Receiver (Rx): A coil embedded inside the ski boot, which receives the electromagnetic energy and converts it into electrical power
Edge pressure AI feedback
Helps skiers refine technique via connected app. Uses pressure sensors + AI algorithms to track how skiers distribute weight and apply pressure on ski edges. Analyzes force distribution to detect understeering, oversteering, or balance
Bluetooth Smart Heating System
By connecting to a cell phone App via Bluetooth, the user can adjust the temperature

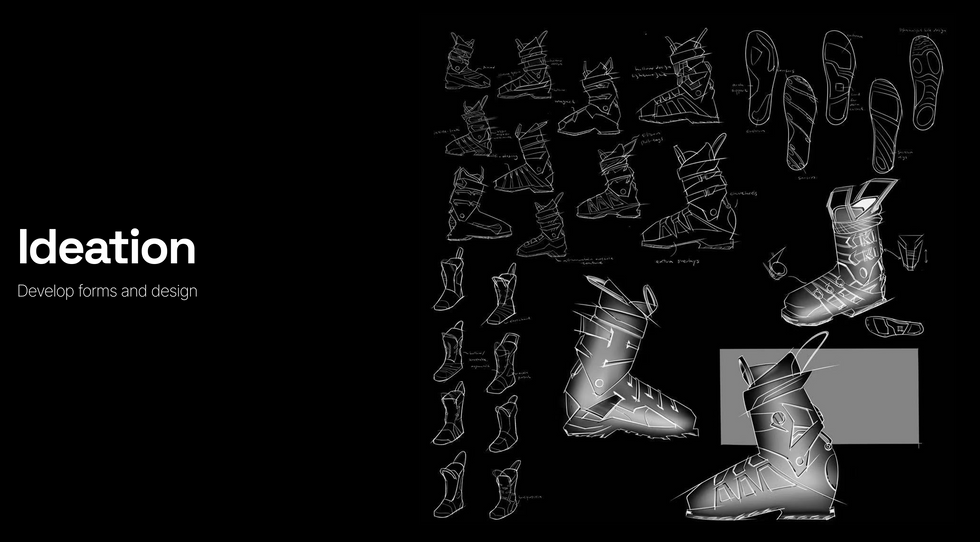

Design Process
Unbuckle the Ordinary
